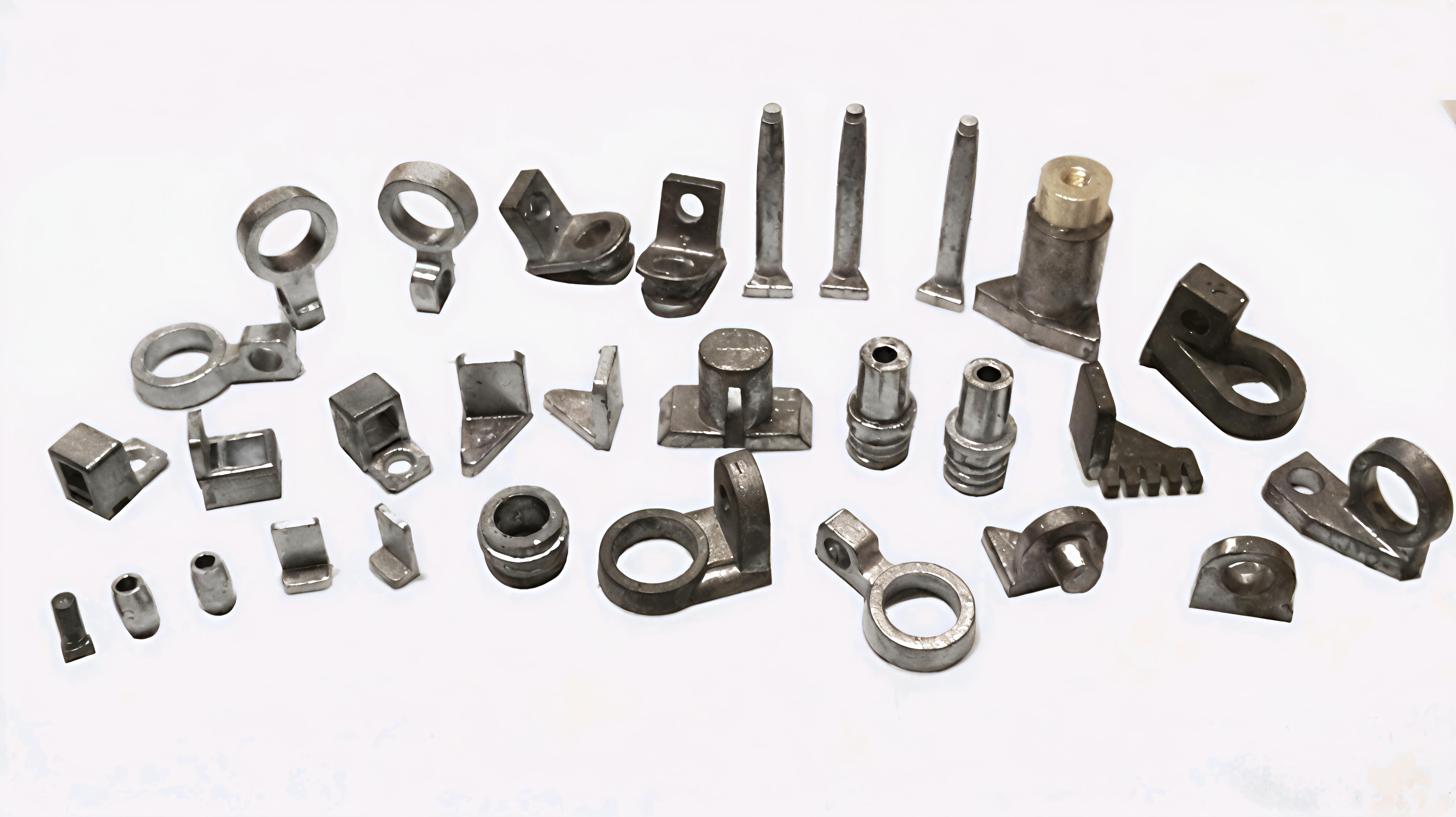

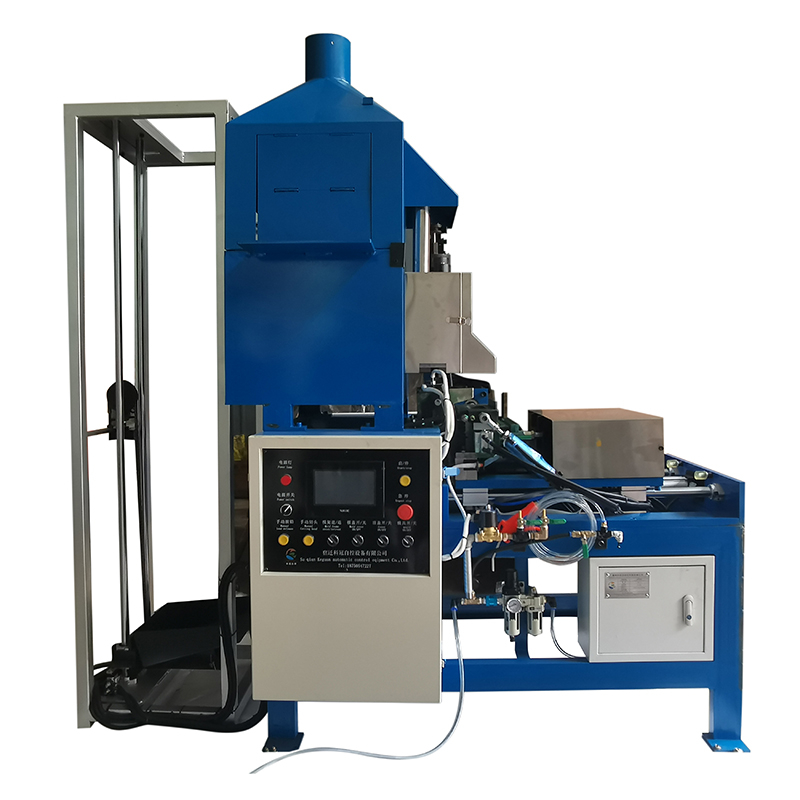

·Technical Parameters
Specification | 1 pot 1 machine | 1 pot 2 machines | 1 pot 3 machines |
Model | JXL-2 | JXL-2S | JXL-3S |
Lead Furnace Power | 12 kw | 21 kw | 21 kw |
Lead slot power | 3 kw | 3 kw * 2 | 3 kw * 3 |
Lead furnace capacity | 700kg | 1200kg | 1200kg |
Operator | 1 | 1 | 1 |
Basic average efficiency | 3 molds per Min*60*8H=1440 molds*cavity of each mold | 2*3molds per Min*60*8H=2880 molds*cavity of each mold | 3*3molds per Min*60*8H=4320 molds*cavity of each mold |
Dimensions | 1900*1000*2200mm | 2300*1800*2200mm | 2300*2600*2200mm |
·Main element configuration
NO. | Item | Model |
|
1 pot 1 machine | 1 pot 2 machine | 1 pot 3 machine |
1 | Operating Voltage | Ac380±5% 50HZ |
2 | Operating Air Source | 0.5—0.7Mp |
3 | Lead furnace capacity | KG | 700kg | 1100kg | 1100kg |
4 | Lead furnace Power | Power(KW) | 12 kw | 21 kw | 21 kw |
5 | Lead crucible power | Power(KW) | 3kw | 6kw | 9kw |
6 | Dimensions | L×W×H mm | 1900*1000*1800 | 2300*1800*2200 | 2300*2600*2200 |
7 | Open mold cylinder | Sc 80*100+Y splice | 1 | 2 | 3 |
8 | Lifting cylinders | Sc 63*730 | 1 | 2 | 2 |
9 | The active plate cylinder | Sc 50*150+Y splice | 1 | 2 | 3 |
10 | The turn/over plate cylinder | MAL 32*100 | 2 | 4 | 6 |
11 | Flip plate cylinder | MAL 32*75 | 1 | 1 | 1 |
12 | motor | King kong motor | 51K40(40w)*1 | 51K40(40w)*2 | 51K40(40w)*3 |
13 | Cutter cylinder | SDA 100*30Inner teeth 18*1.5 | 1 | 2 | 3 |
14 | Lead filling cylinder | MAL32*50 | 1 | 2 | 3 |
15 | Straight bearing | SCS25UU | 2 | 2 | 2 |
16 | Solenoid Valve | 4V-2-10-08-B-AC24-W | 7 | 13 | 19 |
17 | Axis | VANS 30-850L | 2 | 4 | 6 |
18 | Straight bearing | SCS30UUVAV | 4 | 8 | 12 |
19 | Governor | King kong 60W | 1 | 2 | 3 |
20 | Programmer | Xinje XC1-24R-E | 1 | 2 | 3 |
21 | Touch screen | Xinje TG65-XT-C |
